Certbot with trust.certlocker.io: deliver CertLocker certs to your hosts

Who this guide is for

Built for people who already run TLS in production:

• You have nginx/Apache (or a classic PEM bind) and still want stock Certbot on the box.
• You want CertLocker to own issuance, renewals, and the private key — hosts only receive PEMs.
• You are migrating off a host-local Let's Encrypt lineage without rewriting every reload script.

Skip this guide if the consumer is CertLocker edge HAProxy with native ACME (Part 1, Part 2). That path does not use Certbot.

The mental model: three keys

Most Certbot tutorials blur these together. Separate them once and the rest of the guide makes sense.

1. ACME account key. Created and kept by Certbot. It signs ACME requests. CertLocker stores the matching public key against your token after registration.
2. TLS / domain private key. Stored with the certificate in CertLocker. The helper downloads that key over the HTTPS token protocol, installs it on the host, and builds a CSR from it. Certbot never invents a new domain key in this flow.
3. CA signing key. Stays with the CA. You never see it. The ACME certificate response returns certificates only, never a private key.

That is why this guide uses Certbot's certonly --csr mode plus a small helper. CertLocker is delivering a certificate you already hold (with a matching key), not minting a brand-new keypair on the client.

Endpoints you will use

Hosted CertLocker (SaaS):

• ACME directory: https://trust.certlocker.io/rest/acme/directory
• API base for the HTTPS bundle helper: https://trust.certlocker.io/rest/api
• UI: https://trust.certlocker.io/

If you run CertLocker on-prem, swap the hostname for your installation. The path shape (/rest/acme/directory and /rest/api) stays the same.

Prerequisites checklist

• A CertLocker account on trust.certlocker.io (or on-prem) with rights for Certificates, Tokens, and ACME Workflows.
• DNS control (or HTTP-01 reachability) for the first outbound order.
• A Linux host that can reach Trust over HTTPS; sudo/root on that host.
• The hostname in the cert SAN (examples use certbot.example.com).

No custom Certbot plugin is required for inbound delivery from Trust.

Part A — Get a real certificate into CertLocker (then deliver with Certbot)

This is the part that trips people up. trust.certlocker.io inbound ACME is a delivery directory for certificates CertLocker already holds. It is not Let's Encrypt. Certbot does not ask Trust to invent a brand-new leaf from scratch. Trust returns the certificate linked to your token, and the CSR must match the private key CertLocker already stores.

So: you do not start this guide by clicking Certificates → Create (self-signed) for production. You start by putting a CA-issued cert + key into CertLocker (workflow or upload), mint a delivery token, then point Certbot at Trust. When the leaf needs updating later, outbound ACME (or a new upload) updates the CertLocker record first; the same Certbot helper run then pulls the new material using the same key lineage.

1a. Issue or renew with CertLocker ACME Workflows (recommended)

Open the ACME side of CertLocker and run a normal outbound order so inventory owns both the leaf and the private key:

1. Create an ACME client for your issuer (Let's Encrypt staging first, then production).
2. Attach a DNS provider (Cloudflare, etc.) when you want automated DNS-01.
3. Open ACME Workflows → create an order for certbot.example.com (or your hostname).
4. Leave Auto renew on so CertLocker schedules the next CA fetch (~30 days before expiry, or the 75% point for short-lived certs).
5. Wait until the workflow is issued / complete. CertLocker writes the certificate into Certificates with its private key.

Full UI walkthrough with issuer picker and workflow screens: ACME end-to-end and ACME renewal. After the workflow succeeds, continue this guide from the inventory check — then the delivery token and Certbot.

How does Trust / Certbot know how to update the cert?

Short answer: Certbot does not drive CA renewals against Trust. CertLocker already re-fetches from the CA when you leave Auto renew on the ACME workflow. Certbot only re-pulls what inventory already has.

1. Outbound workflow with Auto renew on: CertLocker schedules the next CA order (~30 days before expiry, or the 75% point toward expiry for short-lived certs).
2. When that order runs, inventory updates the same certificate record (leaf + key).
3. Delivery token stays pointed at that cert (renew the token only if the token itself expired).
4. Host timer runs certlocker-certbot-csr, verifies digests, reloads the consumer.

Trust already talks to the CA on a schedule. A daily host timer is enough to notice inventory after those renewals land. The domain key stays in CertLocker unless you deliberately rotate it.

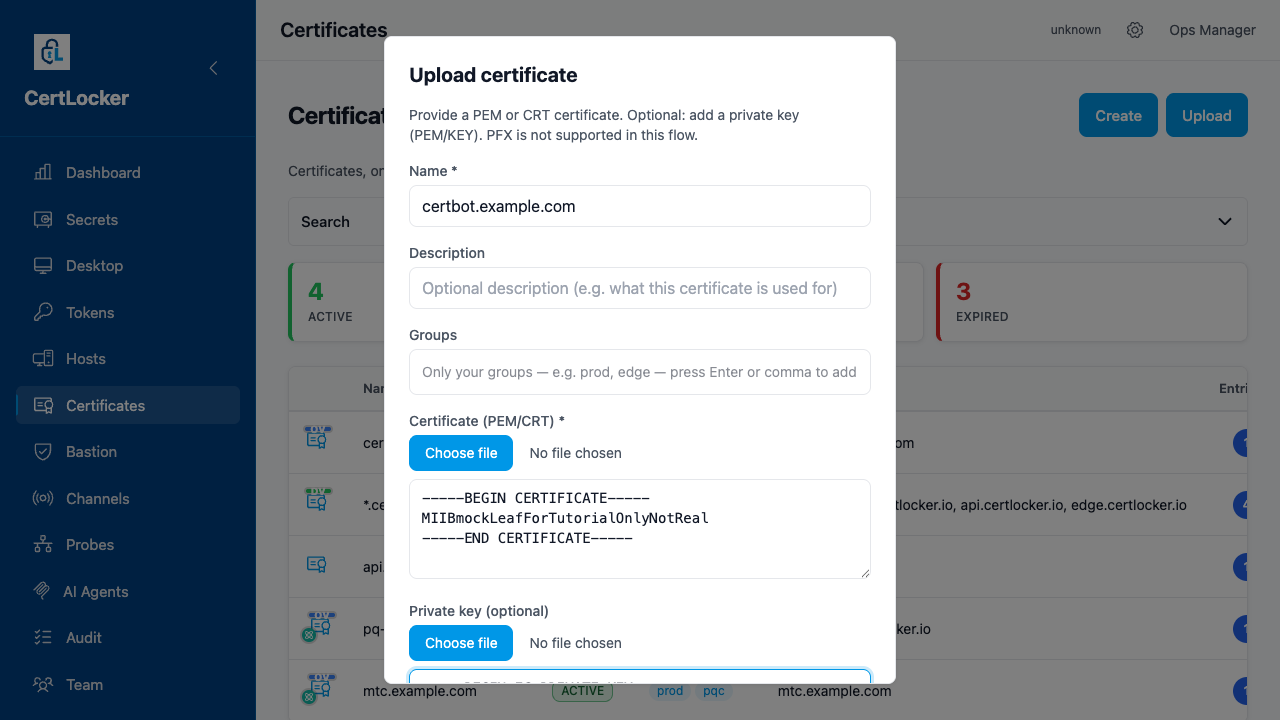

1b. Upload: import an existing certificate and private key

Migrating from an old Certbot/Let's Encrypt host? Upload the leaf and the matching private key so CertLocker becomes source of truth, then deliver with this guide. Open Certificates → Upload.

• Name: a clear label, usually the primary hostname
• Certificate (PEM/CRT): required — paste or choose the leaf
• Private key (PEM/KEY): required for Certbot CSR delivery — paste or choose the matching key
• PFX / PKCS#12 is not supported here — convert to PEM first if needed

# Convert a PFX to PEM leaf + key (example)
openssl pkcs12 -in site.pfx -clcerts -nokeys -out leaf.pem
openssl pkcs12 -in site.pfx -nocerts -nodes -out key.pem

After upload, ongoing renewals should move to CertLocker ACME Workflows (1a) so the next leaf is issued into the same inventory record. Do not keep renewing only on the old host and hoping Trust updates itself.

Lab-only footnote: Certificates → Create can mint a self-signed pair to test tokens and the helper. Do not use that for production traffic.

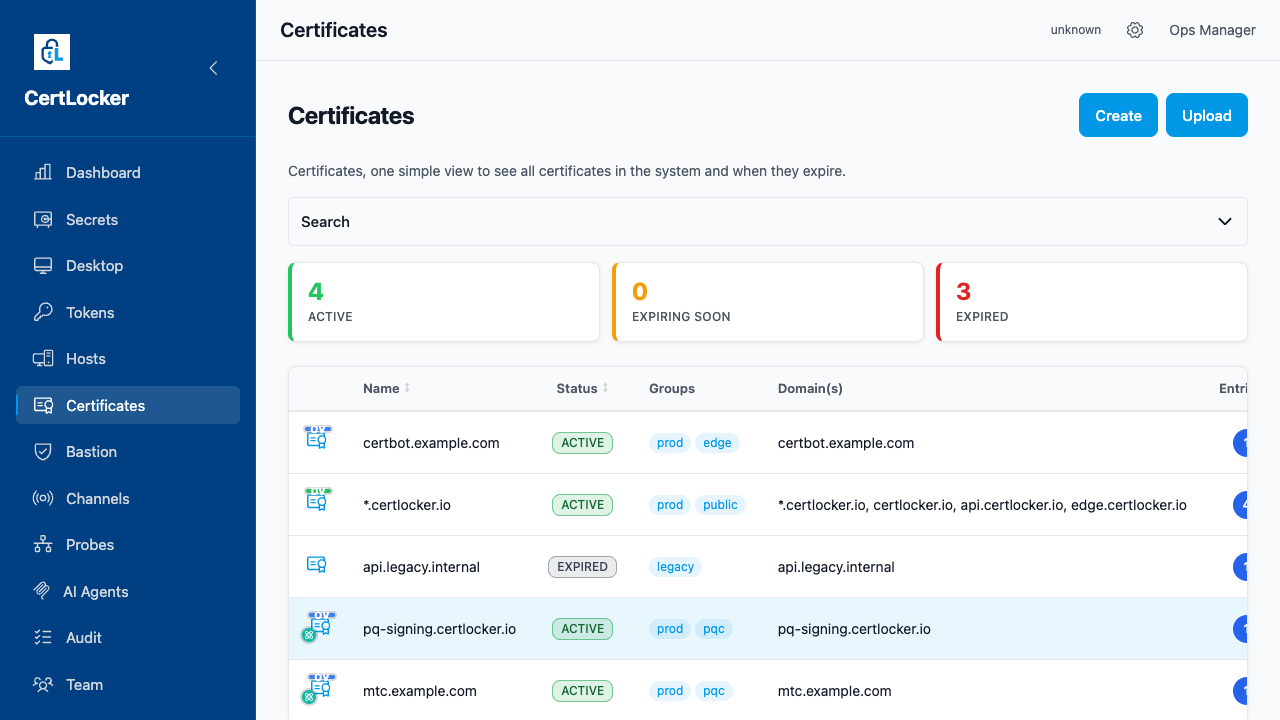

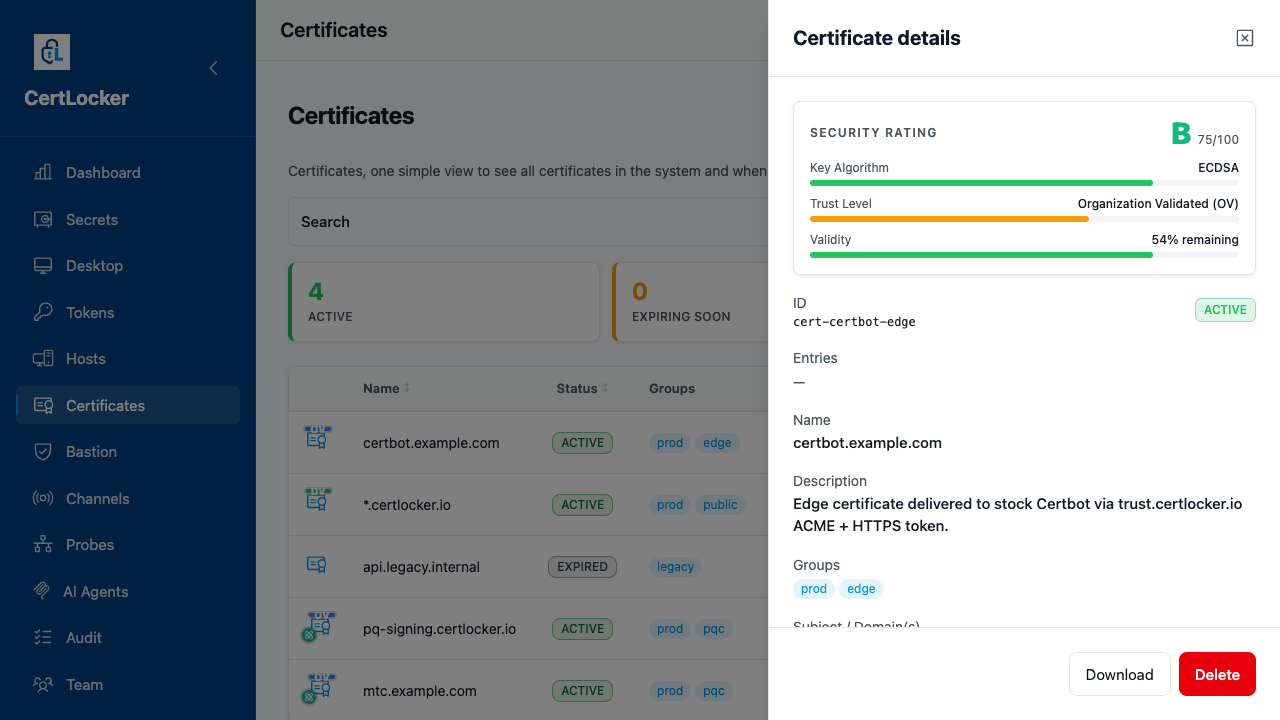

2. Confirm the certificate in inventory

Back on Certificates, you should see an ACTIVE row for your hostname with a stored private key. Open it and confirm domain / SAN, algorithm, and expiry. This is the record the delivery token binds to.

3. Create a CERTIFICATE token with HTTPS and ACME

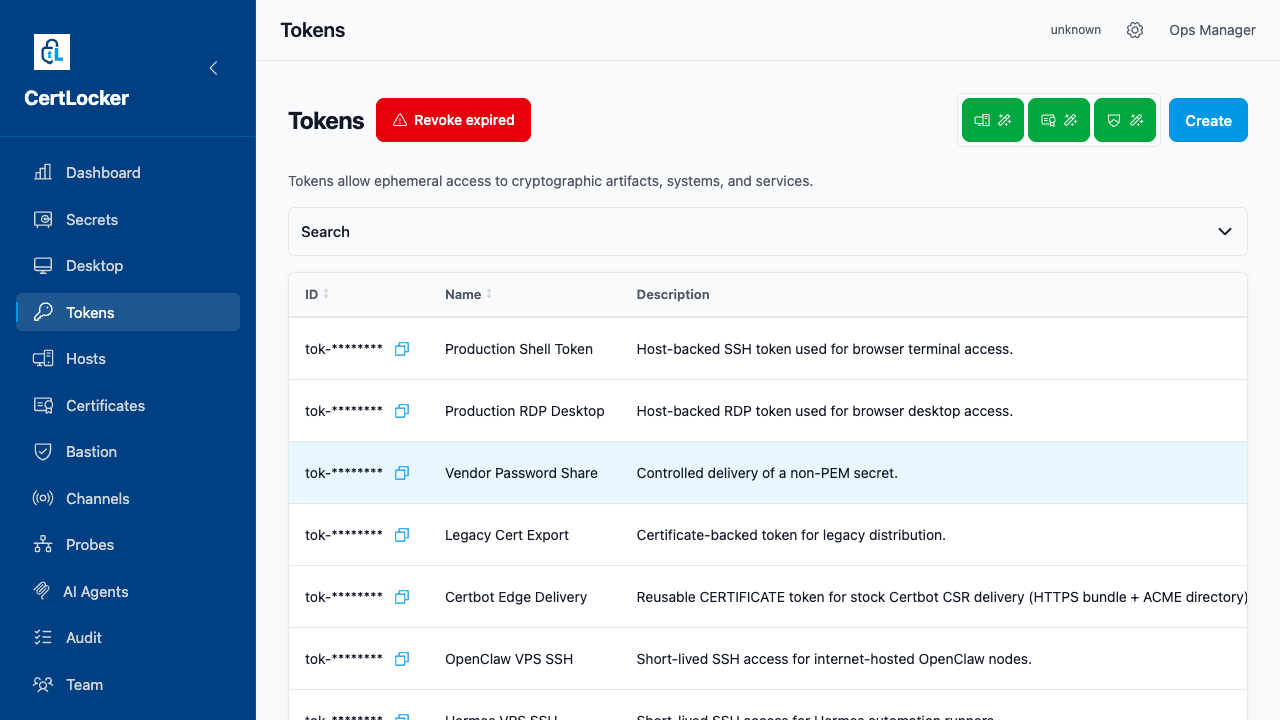

Go to Tokens. You need a token with all of the following:

• Type: CERTIFICATE
• Linked to the certificate from the workflow (or upload)
• Protocols: HTTPS and ACME (both)
• Status: ACTIVE
• Single use unchecked (renewals and re-runs need a reusable token)
• Not expired

Why both protocols? ACME is what Certbot talks to for register / new-order / finalize / download. HTTPS is what the helper uses to fetch the private-key bundle before Certbot starts. ACME alone is not enough for this flow.

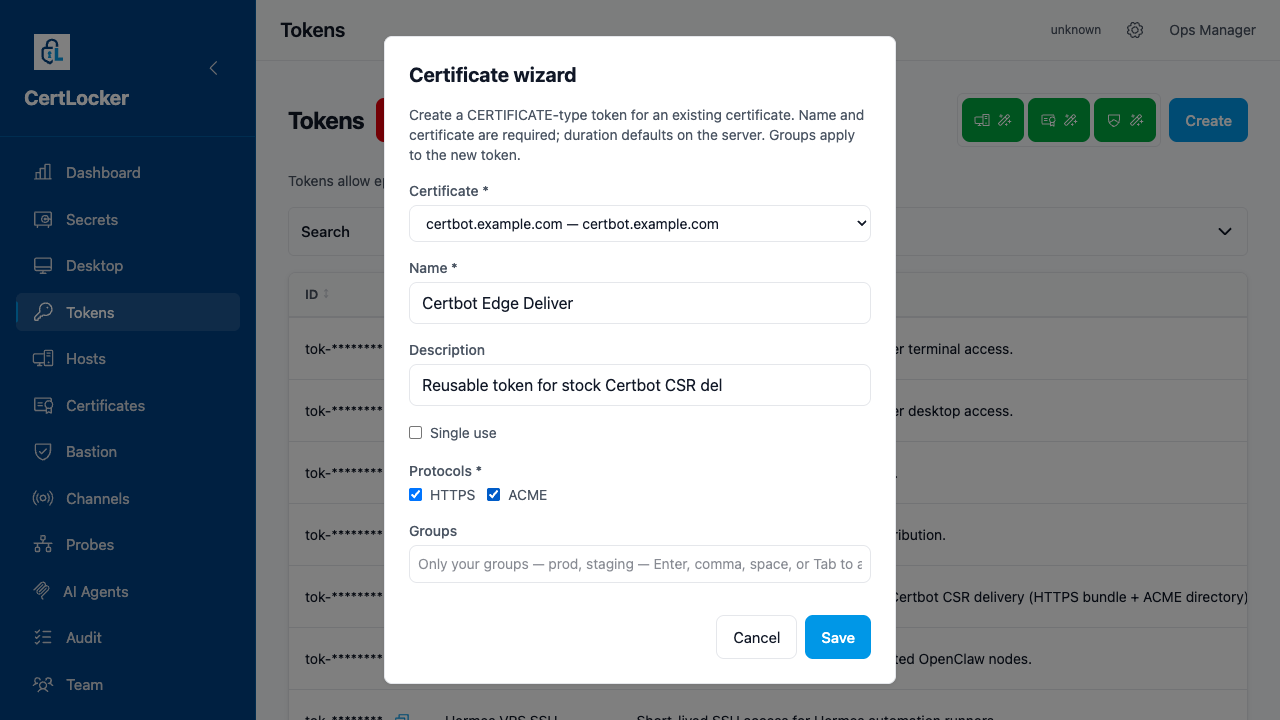

Fastest path: use the green Certificate wizard on the Tokens page.

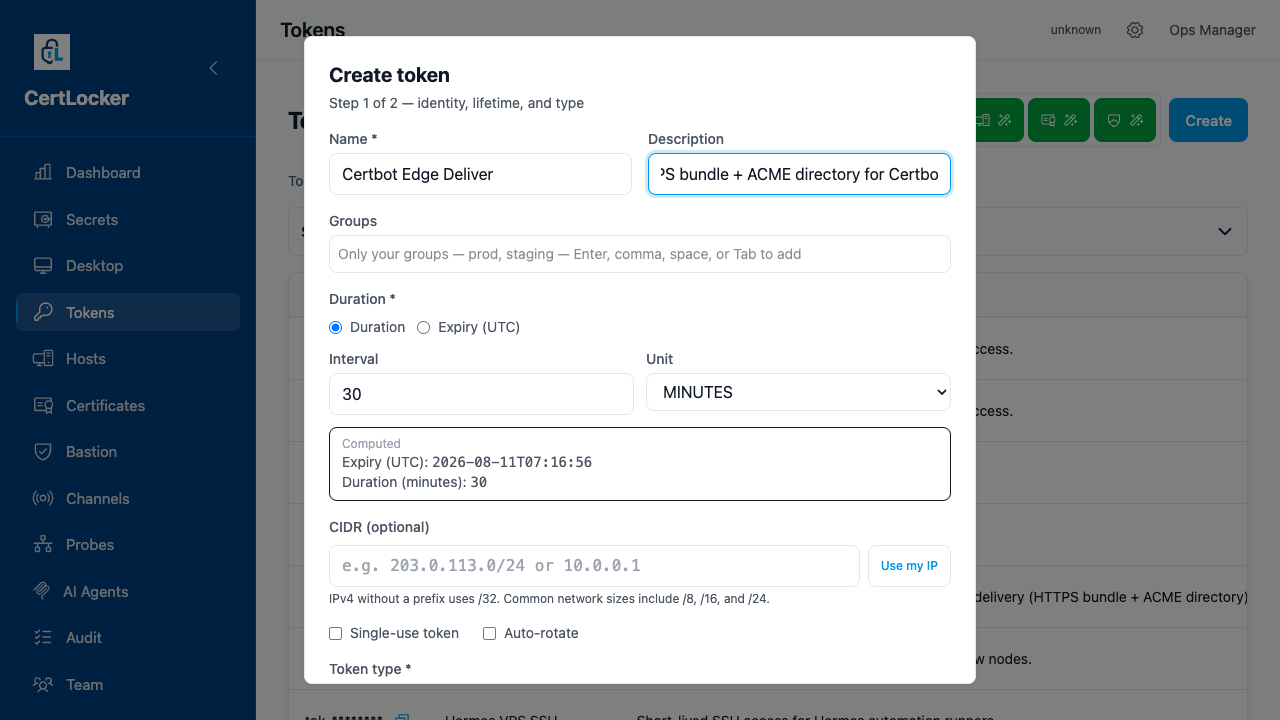

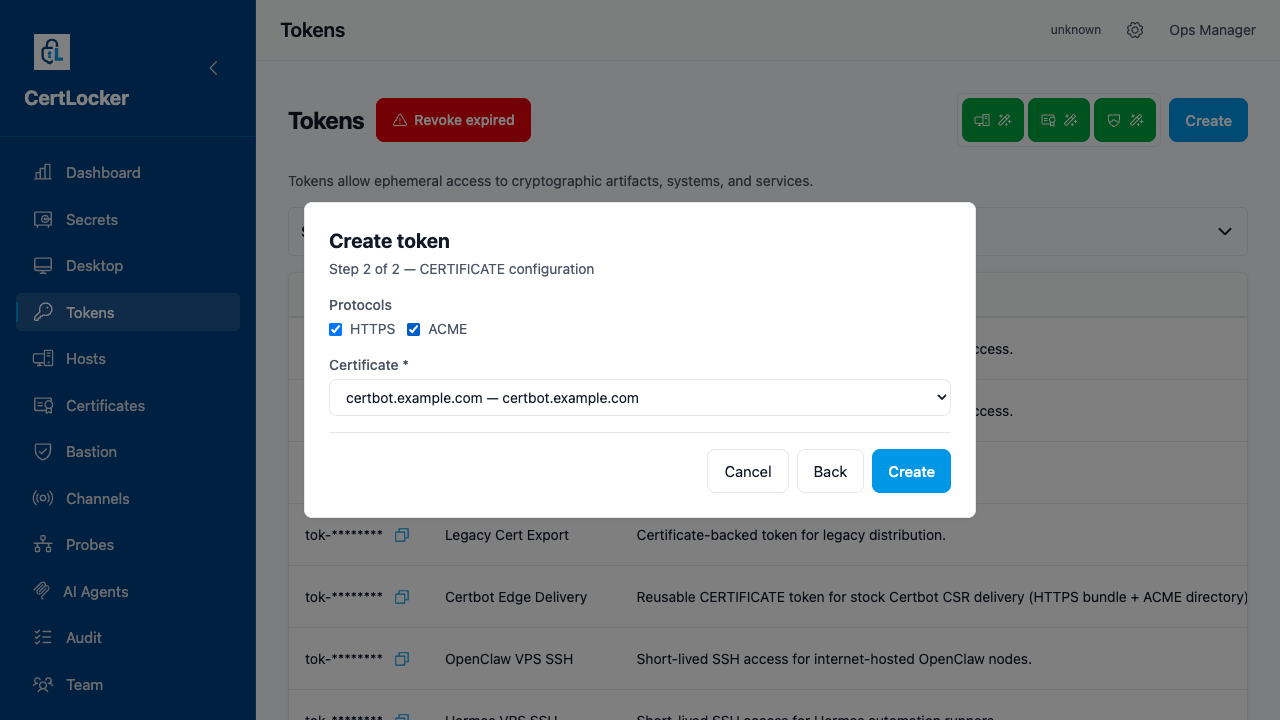

You can also use the main Create flow: choose type CERTIFICATE, then on step 2 enable both protocols and select the certificate.

When the UI shows the raw token value, copy it once into a password manager or paste it straight into the host file in the next section. Do not put it in Slack, tickets, git, or shell history.

Part B — Prepare the Certbot host

4. Install packages (first-time Certbot users)

On Debian / Ubuntu:

sudo apt-get update
sudo apt-get install -y certbot openssl curl ca-certificates

Confirm Certbot is on your PATH: certbot --version. Existing Certbot users can skip the install if the binary is already present and reasonably current (2.x is fine).

5. Install the CertLocker CSR helper

The helper fetches the CertLocker-held private key, builds a matching CSR, runs stock Certbot, and verifies the downloaded certificate before reporting success. Download it from this article and install it root-owned:

sudo curl -fsSL https://certlocker.io/downloads/certlocker-certbot-csr.sh.txt \
  -o /usr/local/sbin/certlocker-certbot-csr
sudo chmod 0755 /usr/local/sbin/certlocker-certbot-csr
sudo chown root:root /usr/local/sbin/certlocker-certbot-csr

Prefer to review the script first? Open certlocker-certbot-csr.sh.txt, read it, then copy it into place.

6. Store the token on the host (never on the command line)

Copy the secret once from step 3. Do not put it in shell history, cron env files in git, Slack, or tickets.

sudo install -d -o root -g root -m 0700 /etc/letsencrypt-certlocker
sudo install -o root -g root -m 0600 /dev/stdin \
  /etc/letsencrypt-certlocker/token
# paste token, Enter, Ctrl-D

The helper refuses group- or world-readable token files. That is intentional. On first install you can skip the rest of this section and come back when a timer starts failing with 401/403.

sudo install -o root -g root -m 0600 /dev/stdin \
  /etc/letsencrypt-certlocker/token
# paste new token, Enter, Ctrl-D
sudo ls -l /etc/letsencrypt-certlocker/token   # expect -rw------- root root
# then rerun the helper

7. Check connectivity before the first run

curl --fail --silent --show-error \
  https://trust.certlocker.io/rest/acme/directory >/dev/null
echo "directory ok"

If this fails, fix DNS, firewall, or TLS trust on the host first. Do not set insecure TLS flags outside an isolated lab.

Part C — First run and verify

Point Certbot at Trust and run the helper. Trust returns the leaf already linked to the token; Certbot is not asking Let's Encrypt for a new public cert here.

8. Run the helper

Replace the domain with your certificate's exact hostname:

sudo env \
  CERTLOCKER_ACME_DIRECTORY=https://trust.certlocker.io/rest/acme/directory \
  CERTLOCKER_API_BASE=https://trust.certlocker.io/rest/api \
  CERTLOCKER_TOKEN_FILE=/etc/letsencrypt-certlocker/token \
  CERTLOCKER_DOMAIN=certbot.example.com \
  /usr/local/sbin/certlocker-certbot-csr

What the helper does, in order:

1. Validates token-file permissions.
2. Fetches the certificate / private-key bundle over HTTPS without printing secrets.
3. Installs the TLS key mode 0600 and creates a SAN-bearing CSR.
4. Runs stock Certbot certonly --csr with stable account state under /etc/letsencrypt-certlocker/.
5. Verifies public-key match and certificate SAN.
6. Writes cert.pem, chain.pem, and fullchain.pem mode 0644.

Default paths:

• Outputs: /etc/letsencrypt/live/<domain>/
• Certbot account state: /etc/letsencrypt-certlocker/<domain>/
• Work files: /var/lib/letsencrypt-certlocker/<domain>/

Override with CERTLOCKER_OUTPUT_DIR, CERTLOCKER_STATE_DIR, and CERTLOCKER_WORK_DIR if your layout differs. It is safe to rerun with the same reusable token and state directory. The helper replaces those three certificate files; it does not delete account state or the private key.

9. Verify the result on the host

sudo openssl x509 -in /etc/letsencrypt/live/certbot.example.com/cert.pem -noout -subject -ext subjectAltName
sudo openssl x509 -in /etc/letsencrypt/live/certbot.example.com/cert.pem -pubkey -noout \
  | openssl dgst -sha256
sudo openssl pkey -in /etc/letsencrypt/live/certbot.example.com/privkey.pem -pubout 2>/dev/null \
  | openssl dgst -sha256

The two digests must match. If they do not, do not reload nginx, HAProxy, Apache, or anything else until you fix the CertLocker certificate/key pair and rerun.

10. Point nginx or Apache at the live path

The helper writes the same layout stock Certbot uses under /etc/letsencrypt/live/<domain>/. Wire the vhost to those files, then reload only after digests match.

nginx

ssl_certificate     /etc/letsencrypt/live/certbot.example.com/fullchain.pem;
ssl_certificate_key /etc/letsencrypt/live/certbot.example.com/privkey.pem;

# after a successful helper run:
sudo nginx -t && sudo systemctl reload nginx

Apache (mod_ssl)

# Debian/Ubuntu: a2enmod ssl; site under sites-available/
# RHEL: httpd + mod_ssl; paths under /etc/httpd/

SSLEngine on
SSLCertificateFile      /etc/letsencrypt/live/certbot.example.com/cert.pem
SSLCertificateKeyFile   /etc/letsencrypt/live/certbot.example.com/privkey.pem
SSLCertificateChainFile /etc/letsencrypt/live/certbot.example.com/chain.pem
# Or use fullchain as the cert file if your Apache build prefers a single chain:
# SSLCertificateFile /etc/letsencrypt/live/certbot.example.com/fullchain.pem

# after a successful helper run:
sudo apachectl configtest && sudo systemctl reload apache2
# RHEL/CentOS/Alma: sudo systemctl reload httpd

Same rule as nginx: never reload on a failed helper exit. In the timer below, swap reload nginx for reload apache2 (or httpd) to match the consumer on that host.

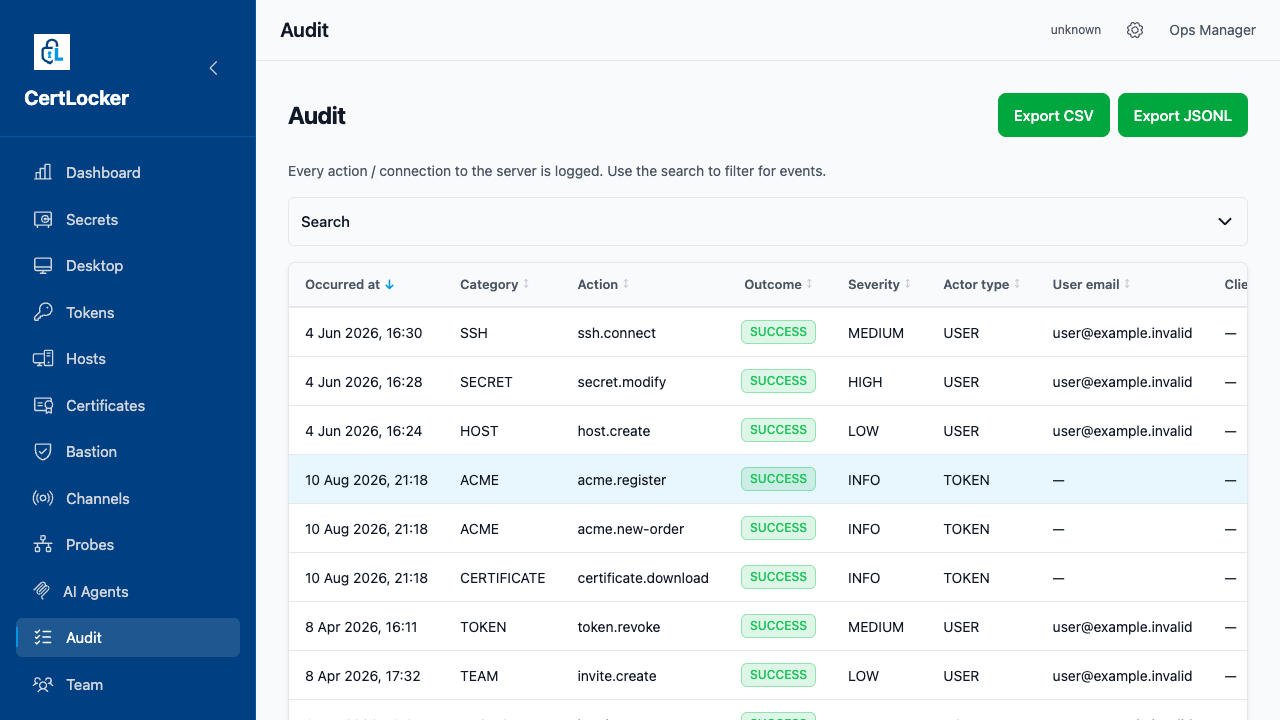

11. Confirm the CertLocker audit trail

Back in the UI, open Audit. A healthy first run typically shows ACME registration, new-order, and certificate download events against the token.

Notes for existing Certbot users

• Do not point your old Let's Encrypt lineage at CertLocker and expect certbot renew to keep working unchanged. CSR mode does not create a normal Certbot-owned renewable lineage because Certbot does not own the domain key.
• Keep your existing Let's Encrypt account directories alone if you still need them. This helper uses /etc/letsencrypt-certlocker/ for CertLocker account state so the two do not collide.
• Your web server config can keep using /etc/letsencrypt/live/<domain>/ if that is already how nginx/Apache/HAProxy load PEMs. Just make sure reloads happen after the helper succeeds.
• If you previously used --standalone, --webroot, or dns-cloudflare against a public CA, that authenticator is not what proves ownership against Trust's inbound delivery directory. Leave the helper defaults alone for production Trust delivery.

Keep the host in sync (cron or systemd)

certbot renew alone is not enough here — Certbot does not own the domain key. CA renewals stay on the ACME Workflow (how updates work). On the host you only need a timer that runs the helper, checks exit code 0, then reloads the consumer.

Example: root cron

# /etc/cron.d/certlocker-certbot
SHELL=/bin/bash
PATH=/usr/local/sbin:/usr/sbin:/usr/bin:/sbin:/bin

15 3 * * * root env \
  CERTLOCKER_ACME_DIRECTORY=https://trust.certlocker.io/rest/acme/directory \
  CERTLOCKER_API_BASE=https://trust.certlocker.io/rest/api \
  CERTLOCKER_TOKEN_FILE=/etc/letsencrypt-certlocker/token \
  CERTLOCKER_DOMAIN=certbot.example.com \
  /usr/local/sbin/certlocker-certbot-csr \
  && systemctl reload nginx
# Apache: ... && systemctl reload apache2
# RHEL:   ... && systemctl reload httpd

Example: systemd timer (preferred on fleets)

Prefer systemd where you already manage Certbot/nginx/Apache as units. For Type=oneshot, ExecStartPost runs only after a successful helper exit — same idea as chaining with && in cron. Change the reload unit to apache2 or httpd when that is the consumer.

# /etc/systemd/system/certlocker-certbot.service
[Unit]
Description=CertLocker Certbot CSR delivery
After=network-online.target
Wants=network-online.target

[Service]
Type=oneshot
Environment=CERTLOCKER_ACME_DIRECTORY=https://trust.certlocker.io/rest/acme/directory
Environment=CERTLOCKER_API_BASE=https://trust.certlocker.io/rest/api
Environment=CERTLOCKER_TOKEN_FILE=/etc/letsencrypt-certlocker/token
Environment=CERTLOCKER_DOMAIN=certbot.example.com
ExecStart=/usr/local/sbin/certlocker-certbot-csr
ExecStartPost=/bin/systemctl reload nginx
# Apache: ExecStartPost=/bin/systemctl reload apache2
# RHEL:   ExecStartPost=/bin/systemctl reload httpd

# /etc/systemd/system/certlocker-certbot.timer
[Unit]
Description=Daily CertLocker Certbot delivery

[Timer]
OnCalendar=*-*-* 03:15:00
Persistent=true
RandomizedDelaySec=20m

[Install]
WantedBy=timers.target

# enable:
# sudo systemctl daemon-reload
# sudo systemctl enable --now certlocker-certbot.timer
# sudo systemctl list-timers | grep certlocker

How to keep auto-renew healthy

• Delivery token: leave Single use off. Before expiry, use Renew in CertLocker (see token lifecycle), then rewrite /etc/letsencrypt-certlocker/token. A stale token is the most common reason a previously working timer starts failing.
• Certificate material: leave workflow Auto renew on so Trust re-fetches from the CA on schedule (~30 days before expiry / 75% point). The host helper only needs to pull afterward. Do not renew only on an old Certbot host and expect Trust to notice.
• Account state: keep /etc/letsencrypt-certlocker/<domain>/ across runs so Certbot reuses the ACME account. Do not delete it on every cron tick.
• Reload only on success: chain reload with && or ExecStartPost after a zero exit. A failed helper must not bounce the proxy onto a bad PEM.
• Probe the live endpoint: after delivery, use a CertLocker probe (or equivalent) against the hostname:443 so you know clients see the new leaf, not only that files changed on disk.
• Watch the timer: systemctl status certlocker-certbot.timer, journal logs, and CertLocker Audit for register / order / download failures.
• Do not mix with stock certbot renew for the same lineage. If you still renew other hosts against Let's Encrypt with normal Certbot, keep those jobs and directories separate from /etc/letsencrypt-certlocker/.

Troubleshooting

Security notes

• Keep the token file, Certbot account state, work directory, and any diagnostic logs root-only.
• Never commit token values, private keys, PEM bundles, or account-state files.
• The bundle API includes the token in its request path, so proxy and gateway access logs need sensitive-data retention controls.
• Do not use CERTLOCKER_CERTBOT_INSECURE=true outside an isolated local test.

HAProxy: Certbot PEMs vs native ACME

Two supported paths talk to CertLocker's ACME directory. Pick one per host — do not mix them.

If the consumer is edge HAProxy with native ACME, stop here and use those guides instead of this helper:

• HAProxy 3.3 Native ACME with CertLocker
• Private key seeding for HAProxy native ACME

Classic HAProxy that only loads a PEM from disk can still use this Certbot path: helper timer, then systemctl reload haproxy (or your reload hook) — not HAProxy's native acme renew socket command.

Quick checklist

• Issue/renew the leaf into CertLocker with ACME Workflows (or Upload a matched leaf+key) — not Certificates → Create for production
• ACTIVE certificate with its private key (CN/SAN = Certbot domain)
• Reusable CERTIFICATE token with HTTPS + ACME linked to that cert
• Token stored at /etc/letsencrypt-certlocker/token mode 0600
• Know how to Renew / Rotate the token in CertLocker and rewrite the host file when it expires
• Helper installed at /usr/local/sbin/certlocker-certbot-csr
• curl to the ACME directory succeeds
• Helper run succeeds; pubkey digests match; SAN correct
• nginx or Apache vhost points at /etc/letsencrypt/live/<domain>/; reload only after verification
• Audit shows register / order / download
• Auto-renew via systemd timer/cron calling the helper — not only certbot renew
• Renew delivery tokens before expiry; probe the live endpoint after delivery
• For CertLocker edge HAProxy, use native ACME + seeded certlocker.acme.pem, not this Certbot helper

Summary

What ops actually runs: CertLocker owns CA issuance and renewals; a reusable HTTPS+ACME token authorizes the host; certlocker-certbot-csr pulls leaf + key with stock Certbot CSR mode; nginx or Apache reloads only after digests match. Treat Trust as delivery, not a second public CA — and do not expect stock certbot renew to drive this lineage.
